Spezifikation und Anwendung

Technische Daten
Type of Blade	PCD Tiped
Drilling Length	10 x D
Drill Point Angle	130°
Maching direction	Z
Kühlmittel	Internal
Flute	2
How to order	Kontakt
Alle Spezifikationen herunterladen	Herunterladen

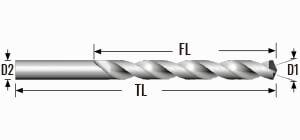

Artikel Code	Outside Diameter	Shank Diameter	Flute Length	Overall Length
524.080.10D.130a	8.0	8	90	130
524.082.10D.130a	8.2	10	120	160
524.086.10D.130a	8.6	10	120	160
524.088.10D.130a	8.8	10	120	160
524.090.10D.130a	9.0	10	120	160
524.092.10D.130a	9.2	10	120	160
524.096.10D.130a	9.6	10	120	160
524.098.10D.130a	9.8	10	120	160
524.010.10D.130a	10.0	10	120	160
524.102.10D.130a	10.2	12	120	160
524.104.10D.130a	10.4	12	120	160
524.106.10D.130a	10.6	12	120	160
524.108.10D.130a	10.8	12	120	160
524.110.10D.130a	11.0	12	120	160
524.112.10D.130a	11.2	12	120	160
524.114.10D.130a	11.4	12	120	160
524.116.10D.130a	11.6	12	120	160
524.118.10D.130a	11.8	12	120	160
524.120.10D.130a	12.0	12	120	160

PCD Dill:
