Spezifikation und Anwendung
| Technische Daten | |
|---|---|
| Type of Blade | PCD Tiped |
| Drilling Length | 3 x D |
| Drill Point Angle | 130° |
| Maching direction | Z |
| Kühlmittel | Internal |
| Flute | 2 |
| How to order | Kontakt |
| Alle Spezifikationen herunterladen | Herunterladen |

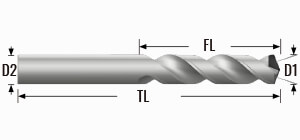

| Artikel Code | Outside Diameter | Shank Diameter | Flute Length | Overall Length |
|---|---|---|---|---|
| 523.080.03D.130a | 8.0 | 8 | 25 | 65 |
| 523.082.03D.130a | 8.2 | 10 | 35 | 75 |
| 523.086.03D.130a | 8.6 | 10 | 35 | 75 |
| 523.088.03D.130a | 8.8 | 10 | 35 | 75 |
| 523.090.03D.130a | 9.0 | 10 | 35 | 75 |
| 523.092.03D.130a | 9.2 | 10 | 35 | 75 |
| 523.096.03D.130a | 9.6 | 10 | 35 | 75 |
| 523.098.03D.130a | 9.8 | 10 | 35 | 75 |
| 523.010.03D.130a | 10.0 | 10 | 35 | 75 |
| 523.102.03D.130a | 10.2 | 12 | 40 | 80 |
| 523.104.03D.130a | 10.4 | 12 | 40 | 80 |
| 523.106.03D.130a | 10.6 | 12 | 40 | 80 |
| 523.108.03D.130a | 10.8 | 12 | 40 | 80 |
| 523.110.03D.130a | 11.0 | 12 | 40 | 80 |
| 523.112.03D.130a | 11.2 | 12 | 40 | 80 |
| 523.114.03D.130a | 11.4 | 12 | 40 | 80 |
| 523.116.03D.130a | 11.6 | 12 | 40 | 80 |
| 523.118.03D.130a | 11.8 | 12 | 40 | 80 |
| 523.120.03D.130a | 12.0 | 12 | 40 | 80 |
