Spezifikation und Anwendung

Technische Daten
Type of Blade	PCD Tiped
Drilling Length	5 x D
Drill Point Angle	130°
Maching direction	Z
Kühlmittel	Internal
Flute	2
How to order	Kontakt
Alle Spezifikationen herunterladen	Herunterladen

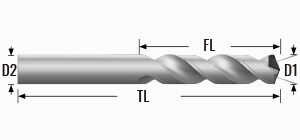

Artikel Code	Outside Diameter	Shank Diameter	Flute Length	Overall Length
523.080.05D.130a	8.0	8	40	80
523.082.05D.130a	8.2	10	60	100
523.086.05D.130a	8.6	10	60	100
523.088.05D.130a	8.8	10	60	100
523.090.05D.130a	9.0	10	60	100
523.092.05D.130a	9.2	10	60	100
523.096.05D.130a	9.6	10	60	100
523.098.05D.130a	9.8	10	60	100
523.010.05D.130a	10.0	10	60	100
523.102.05D.130a	10.2	12	60	100
523.104.05D.130a	10.4	12	60	100
523.106.05D.130a	10.6	12	60	100
523.108.05D.130a	10.8	12	60	100
523.110.05D.130a	11.0	12	60	100
523.112.05D.130a	11.2	12	60	100
523.114.05D.130a	11.4	12	60	100
523.116.05D.130a	11.6	12	60	100
523.118.05D.130a	11.8	12	60	100
523.120.05D.130a	12.0	12	60	100

PCD Dill:
