3 Flutes Corner Radius End Mill For Aluminum(al550)
Workpiece Material
Specification and Application
| Tech data | |
|---|---|
| Grade | AL550 |
| In Store | Yes |
| How to order | Contact Us |
| Download all Specification | Download |

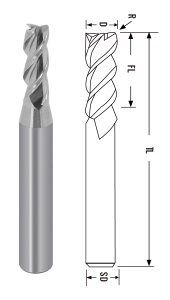

| 3 Flutes Corner Radius End Mill For Aluminum | Order No. | D h7[mm] | R[mm] | FL[mm] | TL[mm] | SD h6[mm] |
|---|---|---|---|---|---|---|
 | AL550NC3-010-01 | 1.0 | 0.1 | 3 | 50 | 4 |
| AL550NC3-010-02 | 1.0 | 0.2 | 3 | 50 | 4 | |
| AL550NC3-015-01 | 1.5 | 0.1 | 4.5 | 50 | 4 | |
| AL550NC3-015-02 | 1.5 | 0.2 | 4.5 | 50 | 4 | |
| AL550NC3-020-01 | 2.0 | 0.1 | 6 | 50 | 4 | |
| AL550NC3-020-02 | 2.0 | 0.2 | 6 | 50 | 4 | |
| AL550NC3-020-03 | 2.0 | 0.3 | 6 | 50 | 4 | |
| AL550NC3-020-05 | 2.0 | 0.5 | 6 | 50 | 4 | |
| AL550NC3-030-02 | 3.0 | 0.2 | 8 | 50 | 4 | |
| AL550NC3-030-03 | 3.0 | 0.3 | 8 | 50 | 4 | |
| AL550NC3-030-05 | 3.0 | 0.5 | 8 | 50 | 4 | |
| AL550NC3-030-10 | 3.0 | 1.0 | 8 | 50 | 4 | |
| AL550NC3-040-02 | 4.0 | 0.2 | 11 | 50 | 4 | |
| AL550NC3-040-03 | 4.0 | 0.3 | 11 | 50 | 4 | |
| AL550NC3-040-05 | 4.0 | 0.5 | 11 | 50 | 4 | |
| AL550NC3-040-10 | 4.0 | 1.0 | 11 | 50 | 4 | |
| AL550NC3-060-02 | 6.0 | 0.2 | 15 | 50 | 6 | |
| AL550NC3-060-03 | 6.0 | 0.3 | 15 | 50 | 6 | |
| AL550NC3-060-05 | 6.0 | 0.5 | 15 | 50 | 6 | |
| AL550NC3-060-10 | 6.0 | 1.0 | 15 | 50 | 6 | |
| AL550NC3-080-02 | 8.0 | 0.2 | 20 | 60 | 8 | |
| AL550NC3-080-05 | 8.0 | 0.5 | 20 | 60 | 8 | |
| AL550NC3-080-10 | 8.0 | 1.0 | 20 | 60 | 8 | |
| AL550NC3-100-02 | 10.0 | 0.2 | 30 | 75 | 10 | |
| AL550NC3-100-03 | 10.0 | 0.3 | 30 | 75 | 10 | |
| AL550NC3-100-05 | 10.0 | 0.5 | 30 | 75 | 10 | |
| AL550NC3-120-05 | 12.0 | 0.5 | 30 | 75 | 12 | |
| AL550NC3-120-10 | 12.0 | 1.0 | 30 | 75 | 12 | |
| AL550NC3-140-05 | 14.0 | 0.5 | 35 | 100 | 14 | |
| AL550NC3-140-10 | 14.0 | 1.0 | 35 | 100 | 14 | |
| AL550NC3-140-20 | 14.0 | 2.0 | 35 | 100 | 14 | |
| AL550NC3-160-05 | 16.0 | 0.5 | 40 | 100 | 16 | |
| AL550NC3-160-10 | 16.0 | 1.0 | 40 | 100 | 16 | |
| AL550NC3-160-20 | 16.0 | 2.0 | 40 | 100 | 16 | |
| AL550NC3-200-05 | 20.0 | 0.5 | 45 | 100 | 20 | |
| AL550NC3-200-10 | 20.0 | 1.0 | 45 | 100 | 20 | |
| AL550NC3-200-20 | 20.0 | 2.0 | 45 | 100 | 20 |
Soild Carbide Milling Cutter:
Soild Carbide Drills:
Wood Router Bits:
- High wear resistance
- Reduce the machine time
- Stable Performance
- Easy to use
