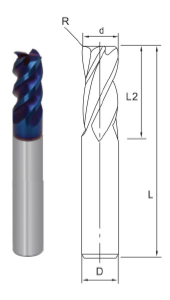

4 Flutes Corner Radius End Mill
Workpiece Material
Specification and Application
Tech data | |
---|---|
Grade | B650 |
Coating | NACO4 |
Coating color | Blue |
In Store | Yes |
How to order | Contact Us |
Download all Specification | Download |
4 Flutes Corner Radius End Mill | Item Code | Flute Diameter | R | Flute Length | Overall Length | Shank Diameter |
---|---|---|---|---|---|---|
B650NC4-010-02 | 1.0 | 0.2 | 2 | 50 | 4 | |
B650NC4-015-02 | 1.5 | 0.2 | 3 | 50 | 4 | |
B650NC4-020-03 | 2.0 | 0.3 | 4 | 50 | 4 | |
B650NC4-030-10 | 3.0 | 1.0 | 6 | 50 | 4 | |
B650NC4-040-10 | 4.0 | 1.0 | 8 | 50 | 4 | |
B650NC4-050-10 | 5.0 | 1.0 | 10 | 50 | 6 | |
B650NC4-060-20 | 6.0 | 2.0 | 12 | 50 | 6 | |
B650NC4-080-10 | 8.0 | 1.0 | 16 | 60 | 8 | |
B650NC4-100-15 | 10.0 | 1.5 | 20 | 75 | 10 | |
B650NC4-120-20 | 12.0 | 2.0 | 24 | 75 | 12 |
Soild Carbide Milling Cutter:
Soild Carbide Drills:
Wood Router Bits:
- High wear resistance
- Reduce the machine time
- Stable Performance
- Easy to use
