Micro Diameter 4 Flutes Rib Corner Radius End Mill
Workpiece Material
Specification and Application
| Tech data | |
|---|---|
| Grade | DF560 |
| Coating | DLC |
| Coating color | Color |
| In Store | Yes |
| How to order | Contact Us |
| Download all Specification | Download |

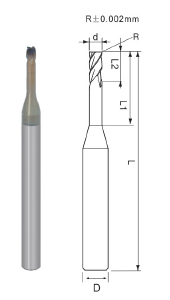

| Micro Diameter 4 Flutes Rib Corner Radius End Mill | Item Code | Outside Diameter | R | Flute Length | Effective Length | Overall Length | Shank Diameter |
|---|---|---|---|---|---|---|---|
 | DF560MLRNC4-010104 | 1.0 | 0.1 | 1.2 | 6 | 50 | 4 |
| DF560MLRNC4-010206 | 1.0 | 0.2 | 1.2 | 6 | 50 | 4 | |
| DF560MLRNC4-0150106 | 1.5 | 0.1 | 1.8 | 6 | 50 | 4 | |
| DF560MLRNC4-0150208 | 1.5 | 0.2 | 1.8 | 8 | 50 | 4 | |
| DF560MLRNC4-020208 | 2.0 | 0.2 | 2.4 | 8 | 50 | 4 | |
| DF560MLRNC4-020216-D6 | 2.0 | 0.2 | 2.4 | 16 | 50 | 6 | |
| DF560MLRNC4-030212 | 3.0 | 0.2 | 3.6 | 12 | 50 | 4 | |
| DF560MLRNC4-030512 | 3.0 | 0.5 | 3.6 | 12 | 50 | 4 | |
| DF560MLRNC4-040216-D6 | 4.0 | 0.2 | 4.8 | 16 | 50 | 6 | |
| DF560MLRNC4-040516-D6 | 4.0 | 0.5 | 4.8 | 16 | 50 | 6 |
Soild Carbide Milling Cutter:
Soild Carbide Drills:
Wood Router Bits:
- High wear resistance
- Reduce the machine time
- Stable Performance
- Easy to use
