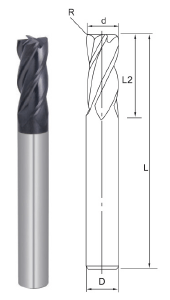

Long Shank Corner Radius End Mill/4 Flutes
Workpiece Material
Specification and Application
| Tech data | |
|---|---|
| Grade | S500 |
| Coating | TiALN |
| Coating color | Black Grey |
| In Store | Yes |
| How to order | Contact Us |
| Download all Specification | Download |
| Long Shank Corner Radius End Mill/4 Flutes | Item Code | Flute Diameter | R | Flute Length | Overall Length | Shank Diameter |
|---|---|---|---|---|---|---|
 | S500NCL4-040-05 | 4.0 | 0.5 | 12 | 75 | 4 |
| S500NCL4-060-05 | 6.0 | 0.5 | 15 | 75 | 6 | |
| S500NCL4-080-05 | 8.0 | 0.5 | 20 | 75 | 8 | |
| S500NCF4-040-05 | 4.0 | 0.5 | 16 | 100 | 4 | |
| S500NCF4-060-05 | 6.0 | 0.5 | 20 | 100 | 6 | |
| S500NCF4-080-10 | 8.0 | 1.0 | 25 | 100 | 8 | |
| S500NCF4-100-10 | 10.0 | 1.0 | 35 | 100 | 10 | |
| S500NCF4-120-10 | 12.0 | 1.0 | 40 | 100 | 12 | |
| S500NCJ4-060-10 | 6.0 | 1.0 | 30 | 150 | 6 | |
| S500NCJ4-120-10 | 12.0 | 1.0 | 45 | 150 | 12 |
Soild Carbide Milling Cutter:
Soild Carbide Drills:
Wood Router Bits:
- High wear resistance
- Reduce the machine time
- Stable Performance
- Easy to use
