Micro Diameter 2 Flutes Rib Ball Nose End Mill
Workpiece Material
Specification and Application
| Tech data | |
|---|---|
| Grade | S550 |
| Coating | TISIN |
| Coating color | Bronze |
| In Store | Yes |
| How to order | Contact Us |
| Download all Specification | Download |

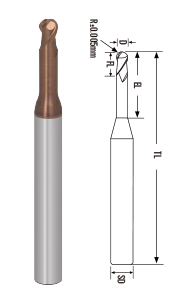

| Micro Diameter 2 Flutes Rib Ball Nose End Mill | Item Code | R (¹/2 D)[mm] | EL[mm] | FL[mm] | TL[mm] | SD h6[mm] |
|---|---|---|---|---|---|---|
 | S550MDGBT2-01004 | R0.5 | 4 | 1.2 | 50 | 4 |
| S550MDFBT2-01004-D6 | R0.5 | 4 | 1.2 | 75 | 6 | |
| S550MDGBT2-01006-D6 | R0.5 | 6 | 1.2 | 50 | 6 | |
| S550MDFBT2-01006-D6 | R0.5 | 6 | 1.2 | 75 | 6 | |
| S550MDGBT2-01008 | R0.5 | 8 | 1.2 | 50 | 4 | |
| S550MDFBT2-01008-D6 | R0.5 | 8 | 1.2 | 75 | 6 | |
| S550MDGBT2-01010-D6 | R0.5 | 10 | 1.2 | 50 | 6 | |
| S550MDGBT2-01012 | R0.5 | 12 | 1.2 | 50 | 4 | |
| S550MDFBT2-01012-D6 | R0.5 | 12 | 1.2 | 75 | 6 | |
| S550MDGBT2-01016-D6 | R0.5 | 16 | 1.2 | 50 | 6 | |
| S550MDGBT2-15004 | R0.75 | 4 | 1.8 | 50 | 4 | |
| S550MDFBT2-15004-D6 | R0.75 | 4 | 1.8 | 75 | 6 | |
| S550MDGBT2-15006-D6 | R0.75 | 6 | 1.8 | 50 | 6 | |
| S550MDGBT2-15008 | R0.75 | 8 | 1.8 | 50 | 4 | |
| S550MDFBT2-15008-D6 | R0.75 | 8 | 1.8 | 75 | 6 | |
| S550MDFBT2-15010-D6 | R0.75 | 10 | 1.8 | 75 | 6 | |
| S550MDGBT2-15012 | R0.75 | 12 | 1.8 | 50 | 4 |
Soild Carbide Milling Cutter:
Soild Carbide Drills:
Wood Router Bits:
- High wear resistance
- Reduce the machine time
- Stable Performance
- Easy to use
