2 Flutes Ball Nose End Mill
Workpiece Material
Specification and Application
| Tech data | |
|---|---|
| Grade | S900 |
| Coating | H-TISIN |
| Coating color | Bronze |
| In Store | Yes |
| How to order | Contact Us |
| Download all Specification | Download |

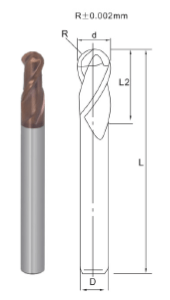

| 2 Flutes Ball Nose End Mill | Item Code | Radius | Flute Length | Overall Length | Shank Diameter |
|---|---|---|---|---|---|
 | S900BT2-R0.5 | R0.5 | 2.0 | 50 | 4 |
| S900BT2-R0.75 | R0.75 | 3.0 | 50 | 4 | |
| S900BT2-R1.00 | R1.00 | 4.0 | 50 | 4 | |
| S900BT2-R1.25 | R1.25 | 5.0 | 50 | 4 | |
| S900BT2-R1.50-D3 | R1.50 | 6.0 | 50 | 3 | |
| S900BT2-R1.75 | R1.75 | 7.0 | 50 | 4 | |
| S900BT2-R2.00 | R2.00 | 8.0 | 50 | 4 | |
| S900BT2-R4.00 | R4.00 | 12.0 | 60 | 8 | |
| S900BT2-R6.00 | R6.00 | 18.0 | 75 | 12 | |
| S900BT2-R10.00 | R10.00 | 30.0 | 100 | 20 |
Soild Carbide Milling Cutter:
Soild Carbide Drills:
Wood Router Bits:
- High wear resistance
- Reduce the machine time
- Stable Performance
- Easy to use
