Micro Diameter 2 Flutes Rib Ball Nose End Mill
Workpiece Material
Specification and Application
| Tech data | |
|---|---|
| Grade | S900 |
| Coating | H-TISIN |
| Coating color | Bronze |
| In Store | Yes |
| How to order | Contact Us |
| Download all Specification | Download |

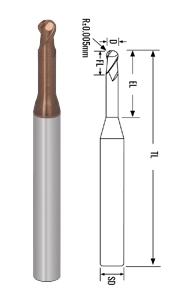

| Micro Diameter 2 Flutes Rib Ball Nose End Mill | Item Code | R (¹/2 D)[mm] | EL[mm] | FL[mm] | TL[mm] | SD h6[mm] |
|---|---|---|---|---|---|---|
 | S900MDGBT2-01004 | R0.5 | 4 | 1.2 | 50 | 4 |
| S900MDFBT2-01004-D6 | R0.5 | 4 | 1.2 | 75 | 6 | |
| S900MDGBT2-01006-D6 | R0.5 | 6 | 1.2 | 50 | 6 | |
| S900MDFBT2-01006-D6 | R0.5 | 6 | 1.2 | 75 | 6 | |
| S900MDGBT2-01008 | R0.5 | 8 | 1.2 | 50 | 4 | |
| S900MDFBT2-01008-D6 | R0.5 | 8 | 1.2 | 75 | 6 | |
| S900MDGBT2-01010-D6 | R0.5 | 10 | 1.2 | 50 | 6 | |
| S900MDGBT2-01012 | R0.5 | 12 | 1.2 | 50 | 4 | |
| S900MDFBT2-01012-D6 | R0.5 | 12 | 1.2 | 75 | 6 | |
| S900MDGBT2-01016-D6 | R0.5 | 16 | 1.2 | 50 | 6 | |
| S900MDGBT2-15004 | R0.75 | 4 | 1.8 | 50 | 4 | |
| S900MDFBT2-15004-D6 | R0.75 | 4 | 1.8 | 75 | 6 | |
| S900MDGBT2-15006-D6 | R0.75 | 6 | 1.8 | 50 | 6 | |
| S900MDGBT2-15008 | R0.75 | 8 | 1.8 | 50 | 4 | |
| S900MDFBT2-15008-D6 | R0.75 | 8 | 1.8 | 75 | 6 | |
| S900MDFBT2-15010-D6 | R0.75 | 10 | 1.8 | 75 | 6 | |
| S900MDGBT2-15012 | R0.75 | 12 | 1.8 | 50 | 4 | |
| S900MDFBT2-15012-D6 | R0.75 | 12 | 1.8 | 75 | 6 | |
| S900MDGBT2-02006-D6 | R1.0 | 6 | 2.4 | 50 | 6 | |
| S900MDGBT2-02008 | R1.0 | 8 | 2.4 | 50 | 4 | |
| S900MDFBT2-02008-D6 | R1.0 | 8 | 2.4 | 75 | 6 | |
| S900MDGBT2-02010-D6 | R1.0 | 10 | 2.4 | 50 | 6 | |
| S900MDGBT2-02012 | R1.0 | 12 | 2.4 | 50 | 4 | |
| S900MDFBT2-02012-D6 | R1.0 | 12 | 2.4 | 75 | 6 | |
| S900MDGBT2-02016-D6 | R1.0 | 16 | 2.4 | 50 | 6 | |
| S900MDGBT2-03008 | R1.5 | 8 | 3.6 | 50 | 4 | |
| S900MDGBT2-03010 | R1.5 | 10 | 3.6 | 50 | 4 | |
| S900MDGBT2-03012 | R1.5 | 12 | 3.6 | 50 | 4 | |
| S900MDFBT2-03012-D6 | R1.5 | 12 | 3.6 | 75 | 6 | |
| S900MDGBT2-03016-D6 | R1.5 | 16 | 3.6 | 50 | 6 | |
| S900MDGBT2-04012-D6 | R2.0 | 12 | 4.8 | 50 | 6 | |
| S900MDGBT2-04016-D6 | R2.0 | 16 | 4.8 | 50 | 6 | |
| S900MDFBT2-04020-D6 | R2.0 | 20 | 4.8 | 75 | 6 |
Soild Carbide Milling Cutter:
Soild Carbide Drills:
Wood Router Bits:
- High wear resistance
- Reduce the machine time
- Stable Performance
- Easy to use
