Specification and Application

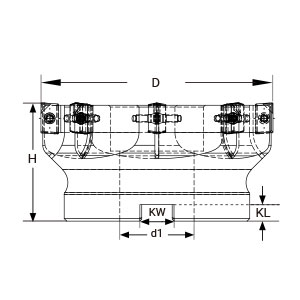

Order No.	D [mm]	d1 [mm]	H [mm]	d1 [mm]	d2 [mm]	Z	apmax.	Weight (KG)
MFX-40-5T	40	16	40	8.4	5.6	5	17	0.20
MFX-50-4T	50	22	40	10.4	6.3	4	17	0.33
MFX-50-6T	50	22	40	10.4	6.3	6	17	0.37
MFX-63-5T	63	22	50	10.4	6.3	5	17	0.61
MFX-80-6T	80	27	50	12.4	7	6	17	0.96
MFX-100-7T	100	32	63	14.4	8	7	17	2.13
MFX-125-8T	125	40	63	16.4	9	8	17	2.80
MFX-160-10T	160	40	63	16.4	9	10	17	3.94
MFX-200-12T	200	60	63	25.7	14	12	17	7.25
MFX-250-14T	250	60	63	25.7	14	14	17	10.66

Accessories

Designation	I [mm]	D [mm]	S [mm]	R
APKT110302-TP	6.35	2.8	3.18	0.2
APKT110304-TP	6.35	2.8	3.18	0.4
APKT110308-TP	6.35	2.8	3.18	0.8
APKT160302-TP	9.525	4.4	3.18	0.2
APKT160304-TP	9.525	4.4	3.18	0.4
APKT160308-TP	9.525	4.4	3.18	0.8
