Centrolock System planer blades
Sundi provides high-quality planer blades specifically designed for the Centrolock System. Our blades ensure easy installation, precise alignment, and consistent performance in industrial planing operations.
Material: Solid tungsten carbide
Grade: SD07, SD08, SD18, SD30
Suitable for cutting: softwood, hardwood, plywood, MDF, and particle board.
Length: 60mm-460mm
Width: 16mm
Thickness: 3mm
For tool system: Centrolock
Ready to place an order? Contact us for detailed specifications, lead time, and minimum order quantity. Sundi ensures stable supply and fast delivery to support your production needs.
- Quality Assurance
- OEM/ODM Service
- Cost Saving
- Fast Delivery
Description

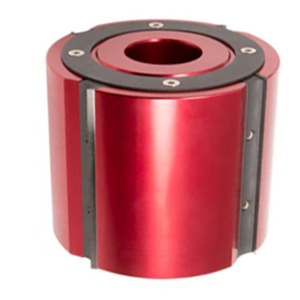

Centrolock knives are specialized planer blades designed for use with Weinig planers and moulders. Installed on Centrolock cutterheads, these knives are known for their fast-change mechanism, which simplifies tool replacement, minimizes downtime, and enhances productivity in high-speed wood processing environments.
Features
Excellent wear resistance and hardness for long-term durability
High precision and balance ensure stable, vibration-free operation
Sharp edges deliver clean, smooth cuts with minimal tear-out
Mirror-like cutting results for superior surface finish
Double-sided reversible design for extended use
Longer service life, reducing the frequency of replacements
Grade:
| Grade | Grain Size（μm） | Density（g/cm³） | Hardness（HRA) | Binder % | TRS(≥Mpa） |
|---|---|---|---|---|---|
| SD07 | 0.6-0.8 | 14.7-14.9 | 92.5-93.5 | 5.7-6.2 | ≥2400 |
| SD08 | 0.6-0.8 | 14.8-15.05 | 93.2-94 | 3.8-5.2 | ≥2800 |
| SD18 | 0.6-0.8 | 15.05-15.25 | 93.9-94.7 | 1.6-2.7 | ≥2600 |
| SD28 | 0.4-0.6 | 15.5-15.5 | 95.0-95.5 | 1.3-1.6 | ≥2500 |
| SD30 | 0.6-0.8 | 14.3-14.5 | 91.4-92.2 | 10-10.5 | ≥2700 |
Specification:

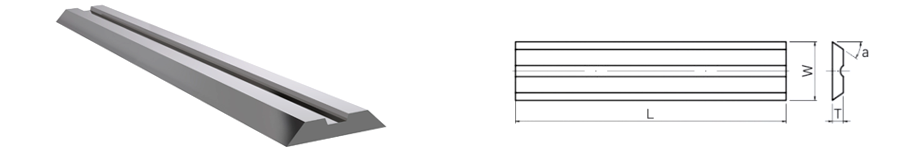

Sundi offers planer knives with a width of 16mm and thickness of 3mm, available in lengths ranging from 60mm to 460mm. Most sizes are in stock for fast delivery. Below are some commonly available dimensions.
If you need a different size, feel free to contact us for customization.
| Length(mm) | Width(mm) | Thickness(mm) |
|---|---|---|
| 80 | 16 | 3 |
| 90 | 16 | 3 |
| 100 | 16 | 3 |
| 110 | 16 | 3 |
| 130 | 16 | 3 |
| 140 | 16 | 3 |
| 150 | 16 | 3 |
| 160 | 16 | 3 |
| 170 | 16 | 3 |
| 180 | 16 | 3 |
| 190 | 16 | 3 |
| 210 | 16 | 3 |
| 230 | 16 | 3 |
| 260 | 16 | 3 |
| 270 | 16 | 3 |
| 310 | 16 | 3 |
| 410 | 16 | 3 |
| 460 | 16 | 3 |
Choose high-quality planer bladesnow!
All information and uploads are secure and confidential.
Related products
Helical Cutter Heads

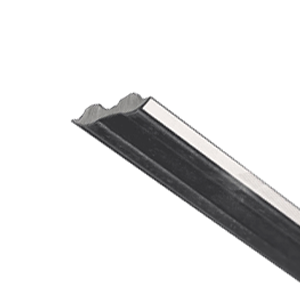

Rectangular Carbide Insert Knives
